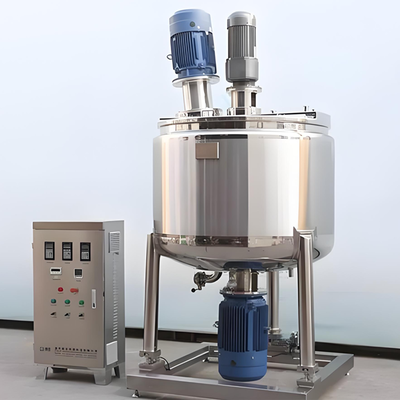

Custom-made 500L/1000L Stainless Steel Homogenizer and Disperser for Chemical Slurries and Liquid Mixing

Custom-made 500L/1000L Stainless Steel Homogenizer and Disperser for Chemical Slurries and Liquid Mixing

Наименование марки:	WeSeW
Номер модели:	Кай003
МОК:	1 шт.
цена:	US$15,000~US$30,000 per pc
Условия оплаты:	Т/Т, Вестерн Юнион
Способность к поставкам:	10 000 штук в месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

CE/UL

Метод охлаждения:

Воздушное охлаждение

Метод нагрева:

Электрическое отопление

Основной материал:

Сплавная сталь, углеродистая сталь, нержавеющая сталь

Смешанная способность:

500-1000 л

Функции безопасности:

Противоскользящие ноги, кнопка экстренной остановки, защита от перегрузки, предохранитель, защитный

Контроль скорости:

Переменная скорость

Диапазон скоростей:

30-39 р/мин

Тип перемешивания:

Спираль

Контроль температуры:

с отоплением

Работающий:

Высокоскоростной смеситель

обработанный материал:

Пластмассы, химикаты, еда, медицина

Область применения:

Пищевая фармацевтика Химика

Основные компоненты:

Мотор, коробка передач

Поставка способности:

500000/год

Размер упаковки:

1500,00 см * 50,00 см * 50,00 см

Вес брутто упаковки:

80.000kg

Упаковывая детали:

деревянный ящик

Поставка способности:

10 000 штук в месяц

Описание продукта

Custom-made 500L/1000L New-Generation Homogenizers and Dispersers for Chemical Slurries, and Liquid Heating Mixing Tanks with Agitators

Advanced mixing and dispersion equipment designed for chemical slurries and liquid heating applications. Customizable capacities and configurations to meet specific industrial requirements.

Technical Specifications

Material Processed Plastics, Chemicals, Food

Capacity 100 L, 200 L, 500 L, 1000 L

Mixer Type Homogenizer

Material SUS304

Additional Capabilities Homogeneity and Dispersion

Voltage 380V

Power 1.1 kW

Core Components Negative Pressure Seal, Helical Gear Reducer

Key Selling Points Multifunctional

Weight 500 kg

Dimensions Customization

Equipment Details

Product Name	Stirring and Dispersing Tank
Description	Stirring and dispersing tank is a widely used equipment in industries such as chemical, pharmaceutical, food, coatings, etc., used for the mixing, dispersion, dissolution, emulsification and other process of materials. Suitable for various process operations, including mixing, dispersion, dissolution, emulsification, etc. Equipped with an efficient mixer that can adapt to materials of different viscosities and characteristics.
Equipment Material	Stainless steel 304 / 316L / As client's demand
Usage	Material can be stirred, blended by mixing and dispersing tank
Applicable Materials	Powder, Granule, Liquid
Machine Type	Homogenization
Feature	No precipitation and adhesion, easy cleaning
Advantage	Suitable for mixing liquids and solid materials to prepare slurries
Application Industry	Chemical, Light industry, Food, Battery, Building Materials, Plastic

Features & Benefits

UL / CE Standard Qualified
Convenient installation and simple operation
Multiple process operations, including mixing, dispersion, dissolution, emulsification, etc.
With functions like heating, cooling, heat preservation, stirring, weighing and others
High degree of automation, reducing labor costs
Quickly achieve uniform mixing of materials
Provide customized design and configuration based on specific process requirements

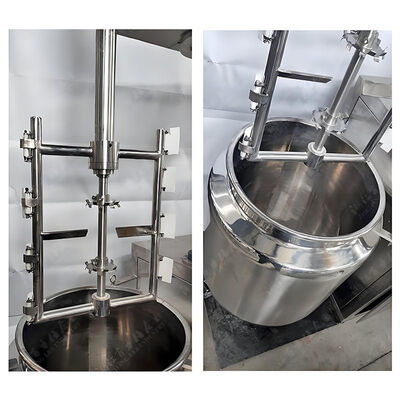

Multiple mixing methods available: anchor, frame, turbine, etc.
Equipped with automated control system to simplify operation process

Product Gallery
