Песочная винтовая стиральная машина
Created with Pixso.

Customized industrial mineral river silica sand river sand spiral washing machine LX765 low investment washing machine for construction, highway, hydropower plants, sand and gravel plants

Customized industrial mineral river silica sand river sand spiral washing machine LX765 low investment washing machine for construction, highway, hydropower plants, sand and gravel plants

Наименование марки: WeSeW
Номер модели: Кай001
МОК: 1 шт.
цена: US$20,000~US$80,000 per pc
Условия оплаты: Т/Т, Вестерн Юнион
Способность к поставкам: 10000 шт в месяц
Подробная информация
Место происхождения:
Китай
Сертификация:
CE,UL
Материал:
Нержавеющая сталь/обычай
Материал:
Теплостойкий, огнеустойчивый
Приложение:
Химическая промышленность, транспорт зерна, перенос горнодобывания, электростанция
Основные компоненты:
Мотор
Размер(Д*Ш*В):
Индивидуальные
Спецификация:
Индивидуальные
Имя:
Песочная винтовая стиральная машина
Упаковывая детали:
деревянный ящик
Поставка способности:
10000 шт в месяц
Выделить:

industrial silica sand washing machine

,

low investment spiral sand washer

,

construction sand screw washer machine

Описание продукта

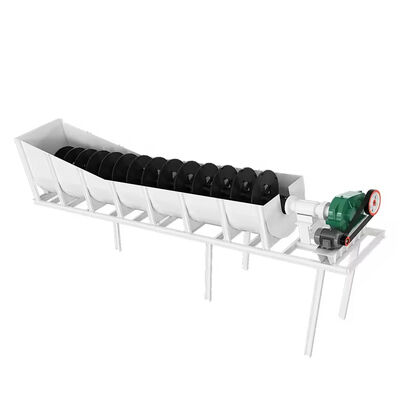

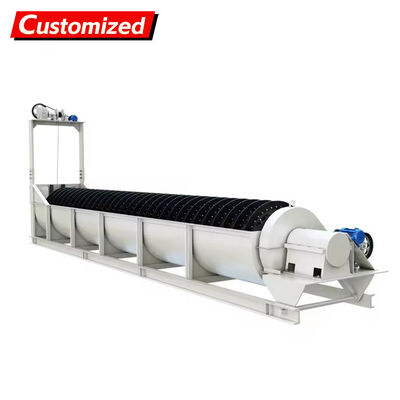

LX765 Spiral Sand Washing Machine
Customized industrial mineral river silica sand spiral washing machine designed for construction, highway projects, hydropower plants, and sand and gravel operations with low investment requirements.
Product Overview
The Spiral Sand Washing and Recycling Machine integrates sand washing, fine sand recovery, and dehydration technologies. This advanced system features compact design, clean final products, minimal fine sand loss, high capacity, extended service life, and reduced maintenance costs, representing the next generation of traditional sand washers.
Technical Specifications
Type Spiral Separator
Production Capacity 20-60t/h (model dependent)
Voltage 380V
Weight 2000 KG
Warranty 12 months
Core Components Motor
Dimension (L*W*H) Refer to specification
Key Selling Points Easy To Operate
Color Customizable
Key Features
  • High cleaning efficiency: Effectively removes dirt, clay, and organic impurities from sand to improve quality
  • Large processing capacity: Handles from several tons to several hundred tons per hour depending on model
  • Low power consumption: Energy-efficient operation reduces operating costs
  • Minimal sand loss: Advanced design preserves fine sand and reduces material waste
  • Durable construction: Wear-resistant steel components ensure long service life with minimal maintenance
  • Eco-friendly operation: Incorporates water recycling systems and energy-efficient motors
Working Principle
The Spiral Sand Washer operates through a synergistic process of agitation, settling and material transportation:
  1. Sand-cement slurry enters the inclined trough
  2. Rotating spiral blades agitate the mixture while gravity settles heavier sand particles
  3. Lighter impurities remain in suspension and are washed away
  4. The spiral conveyor lifts cleaned sand while discharging excess water
  5. Process delivers dewatered, purified material ready for downstream processing
Applications
  • Construction Aggregate Production: Purifies raw quarry material for concrete, asphalt or mortar
  • Mineral Processing: Washes crushed ore to separate waste rock in mining operations
  • Industrial Sand Processing: Produces high-purity sand for glass manufacturing and foundry applications
Environmental Protection
Our spiral sand washers incorporate comprehensive environmental safeguards including closed-loop water recycling systems with sedimentation tanks, dust suppression through sprinklers and enclosed conveyors, noise reduction technology, wastewater treatment with chemical flocculation and pH balancing, energy-efficient motors, and waste segregation programs.
Quality Assurance
Machinery Test Report Provided
Video Inspection Provided
After-sales Service Engineers available to service machinery overseas with full lifecycle support
Product Gallery
