Thermal Screw Conveyor Equipment Heating and cooling jackets for thermal processing can be integrated on Twin Screw, Tubular, and U-Trough Conveyors.

Thermal Screw Conveyor Equipment Heating and cooling jackets for thermal processing can be integrated on Twin Screw, Tubular, and U-Trough Conveyors.

Наименование марки:	WeSeW
Номер модели:	AC0085
МОК:	1 ПК
цена:	US$1500~US$30,000/set
Условия оплаты:	Т/Т, Вестерн Юнион
Способность к поставкам:	100 комплектов в месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

Приложение:

Конвейер с винтовыми полётами

Применимые отрасли:

Фермы, ремонтные машины, производственные предприятия

СЕРВИС:

OEM/ ODM

Обработка поверхности:

Индивидуальные

Размер(Д*Ш*В):

Индивидуальные

Особенность:

Высокая точность, пищевой класс

Послепродажное обслуживание:

Предоставлять

Тип:

Сверло

Кастомизация:

Доступная индивидуальная заявка

Упаковывая детали:

деревянный ящик

Поставка способности:

100 комплектов в месяц

Выделить:

Thermal screw conveyor with heating jacket

Twin screw conveyor for thermal processing

U-Trough conveyor with cooling jacket

Описание продукта

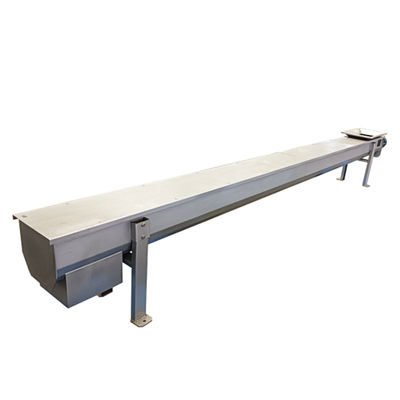

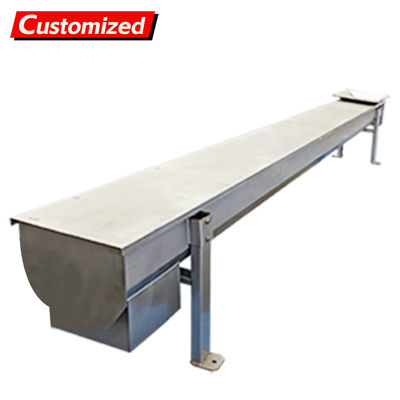

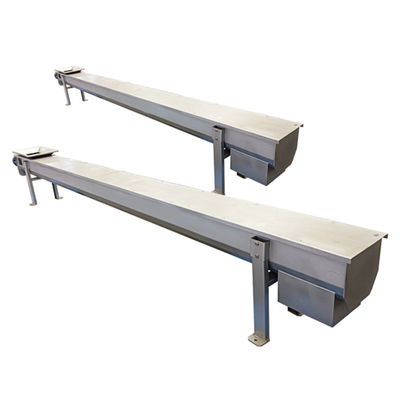

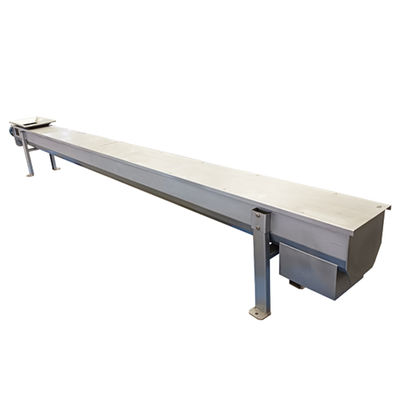

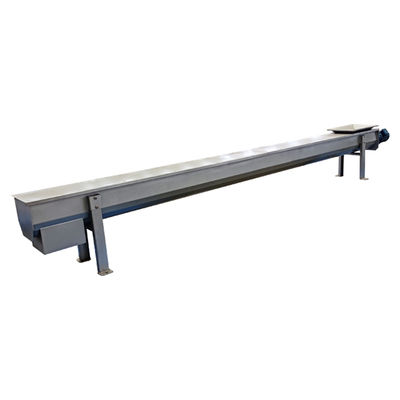

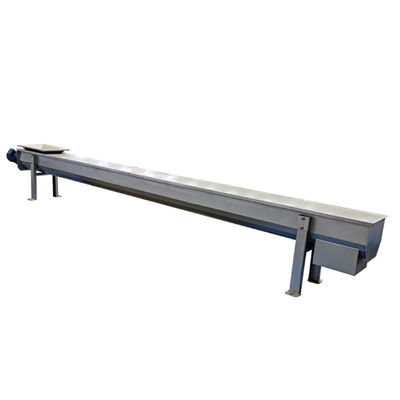

Thermal Screw Conveyor Equipment

Heating and cooling jackets for thermal processing can be integrated on Twin Screw, Tubular, and U-Trough Conveyors.

Technical Specifications

Material	Stainless Steel 304/316, plywood
Voltage	380V/50Hz
Product name	shaftless spiral conveyor

Features & Benefits

Thermal treatment occurs during conveying to eliminate secondary process steps
Independent jacket configuration allows parallel fluid feed for fresh temperature cycles
Indirect heat transfer design often eliminates need for air filtration/exhaust permits
Precise temperature control during material transfer for maximum efficiency
Accurate thermal treatment time control to meet exact process requirements
Greater heat transfer surface area per unit than batch mixer systems
Proprietary design delivers increased efficiency with smaller footprint
High efficiency auger with rotary unions maximizes product contact with heat surfaces
Chain drive with adjustable speed for varying heating/cooling processes
Packing gland style seals offer wide temperature and chemical compatibility
ASME Boiler and Pressure Vessel Code compliant for high pressure applications

Sample Applications

Heating and cooling screw conveyors are used globally for thermal processing in industries including biomass conversion, paper and pulp, biofuels, food and dairy, chemicals, petrochemicals, and minerals processing.
