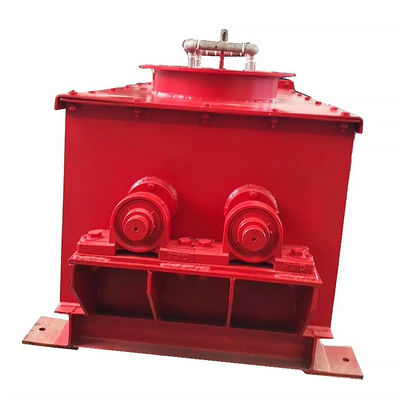

7.5 kW Stainless Steel Paddle Mixer for Power Plant Ash Conditioning

7.5 kW Stainless Steel Paddle Mixer for Power Plant Ash Conditioning

Наименование марки:	WESEW
Номер модели:	КИТАЙ
МОК:	1 шт
цена:	US$8,000~US$50,000 per pc
Условия оплаты:	T/T, Western Union
Способность к поставкам:	10000 комплектов в месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

КИТАЙ

Материал:

Нержавеющая сталь/обычай

Материал:

Теплостойкий, огнеустойчивый

Приложение:

Химическая промышленность, транспорт зерна, перенос горнодобывания, электростанция

Основные компоненты:

Мотор

Измерение (l*w*h):

Индивидуально

Спецификация:

Индивидуально

Размер упаковки:

Индивидуально

Настройка:

Доступная индивидуальная заявка

Упаковывая детали:

Деревянный корпус

Поставка способности:

10000 комплектов в месяц

Выделить:

custom paddle mixer for power plant

pug mill ash conditioner mixer

dust humidifier powder mixing machine

Описание продукта

Paddle Mixer Pug Mill Ash Conditioner Dust Humidifier Mixer for Power Plant

Key attributes

material processed

Chemicals

mixer type

Paddle

warranty

1 Year

voltage

220V/380V

product type

Mixer

video outgoing-inspection

Provided

core components

motor, Engine

additional capabilities

Milling

Power (kW)

7.5 kW

barrel volume (l)

800

weight (kg)

10000 KG

range of spindle speed(r.p.m)

29 - 34 r.p.m

dimension(l*w*h)

Referring

After-sales Service Provided

Engineers available to service machinery overseas

Product name

Paddle Mixer Pug mill Ash conditioner manufacturer design

Motor power

4.0 KW

Usage

Mixing Paste Proucts

Function

Mixing Raw Material

Machine Type

Dispersion Blender Mixer Machine

Application

Powder

Control

Button

Single package size

100X60X50 cm

advantages
1	A spacious turnaround door makes maintenance easier.
2	Flexible and reliable complete electrical control system, safe and simple operation.
3	Excellent shaft seat and seal structure design, not only easy to overhaul, but also completely eliminate the gray water drip.
4	The watershed structure is adopted at the bottom of the shell, and the remaining ash rate is low to ensure that there is no dead space inside.

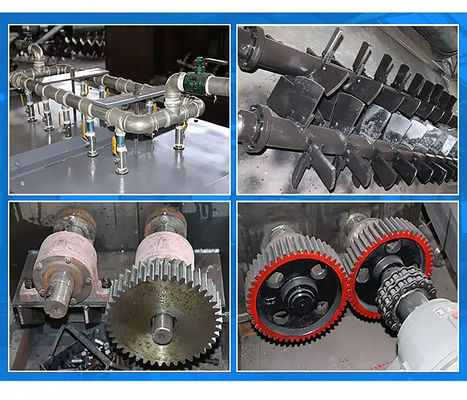

5	Above the blades, there are array nozzles according to the humidifier model and the humidification volume. Each group has dozens of water spray nozzles, and the water spray is even, so that the gray water can be mixed to achieve a good effect. Each set of nozzles is easy to dismantle and facilitates regular inspection and cleaning.

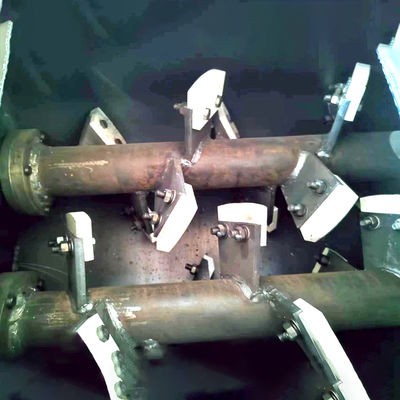

6	The mixing blade made of high alloy wear-resistant electrode is a reliable guarantee for the long service life of the mixer. According to our many years of experience, the reverse vane is used in some places to make the stirring more fully. The two-axis mixer blade produced by our factory adopts screw connection between the blade and the shaft. After the blade is worn, some of the blades are directly replaced. Easy maintenance and low cost.

double axis dust humidifier use:

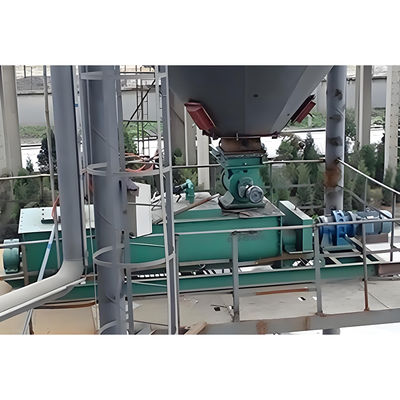

The dust-removing accessories are mainly used for spraying, humidifying, stirring and conveying powdery dry ash of various types of ash storage tanks, so as to meet the requirements of environmental protection and transportation. The product is suitable for humidification, agitation, and transportation of solids-containing materials such as chemicals, mines, power plants, and steel mills.

double axis dust humidifier price working principle:

A pair of high-strength stirring shafts are equipped, and a plurality of fan-shaped agitating blades are distributed on the shaft at a certain angle and pitch. The two agitating shafts are rotated in reverse to uniformly humidify the dry ash and convey spirally. Its advantages are high mixing efficiency, tight system sealing and no fly ash. The speed reducer has a compact structure, a small footprint, a smooth transmission, low noise, even stirring, good abrasion resistance, easy operation and maintenance, and reliable operation.

7.5 kW Stainless Steel Paddle Mixer for Power Plant Ash Conditioning 0
